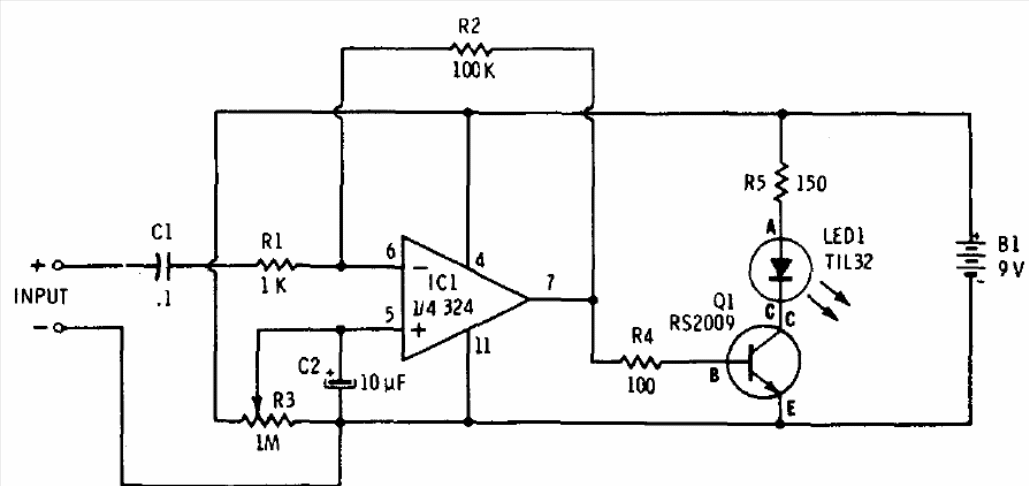

This circuit is from 1977 Radio Shack documentation. The circuit modulates an LED (which can be infrared) for the transmission of audio signals. The power can be done by battery or source and the transistor can be a BD135.
