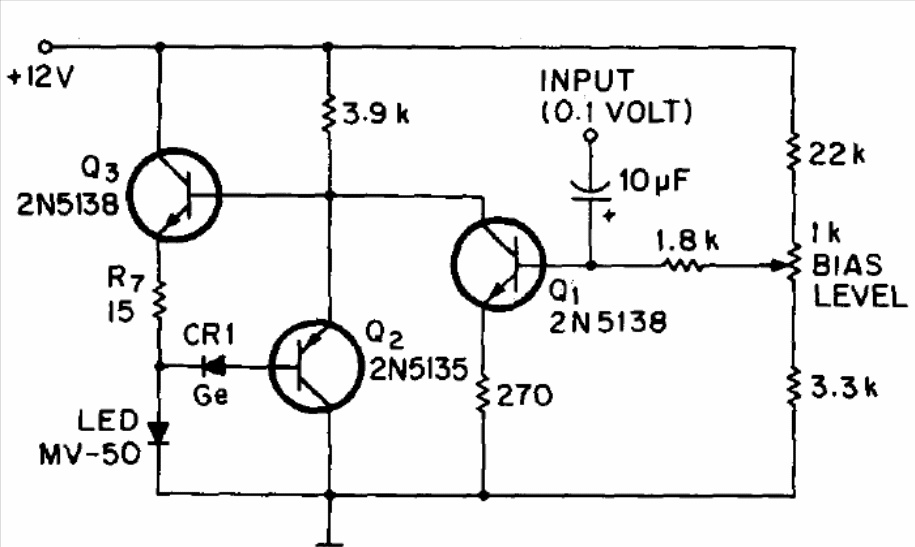

1 MHz LED Modulator (CB13535E)

Details
Written by: Newton C. Braga



We found this circuit in a 1971 documentation. The circuit can be assembled with more modern transistors such as BC548 for Q1, BC558 for Q2 and BD135 for Q3.
