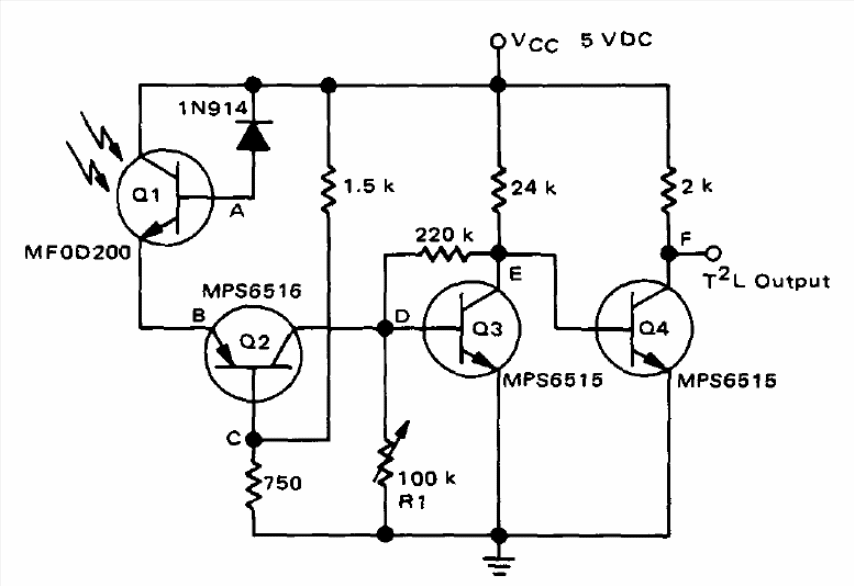

This fiber optic receiver was obtained from a 1978 documentation. We can use any modern phototransistor and the PNP transistor can be the BC558. The other transistors can be the BC548. The circuit has an output compatible with TTL logic.
| Clique na imagem para ampliar |
