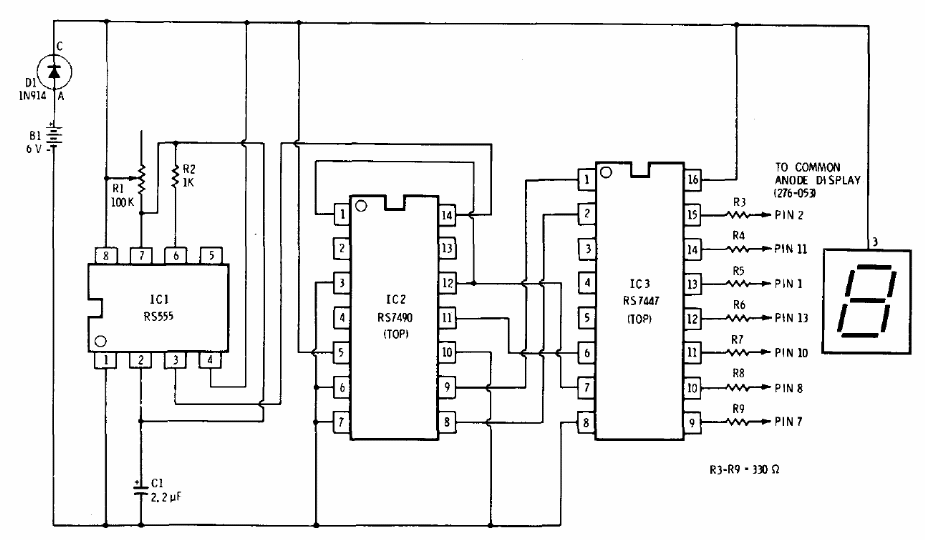

This digital didactic digit counter uses common TTL integrated circuits and a common anode display. The circuit is from an American publication from 1977 and can be expanded to more digits. The counting speed can be adjusted in R1. The 555 can also be configured as monostable for manual counting.
