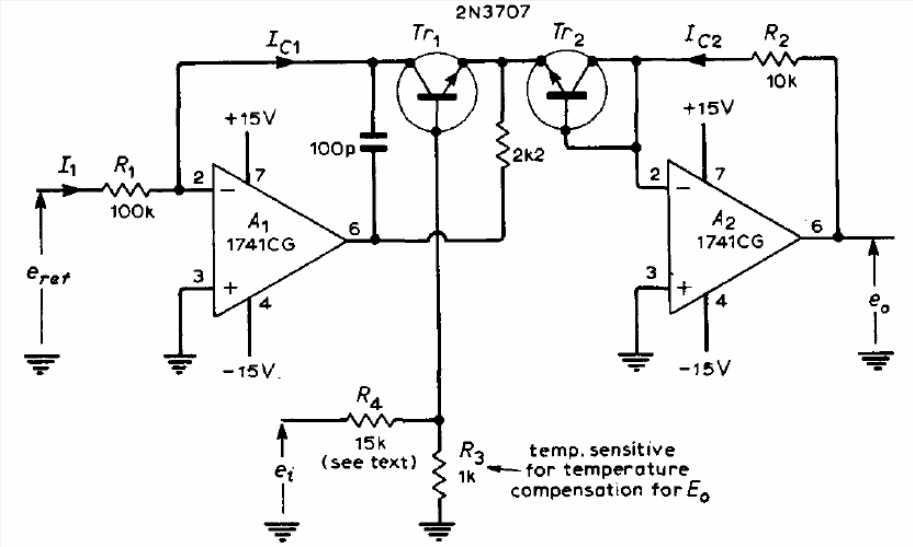

This circuit was obtained in a manual of operational amplifiers of 1973. The circuit uses amplifiers 741 and transistors that can be the BC548. The circuit has a temperature compensation and must be powered by a symmetrical source. The voltage gain is 10 times.
