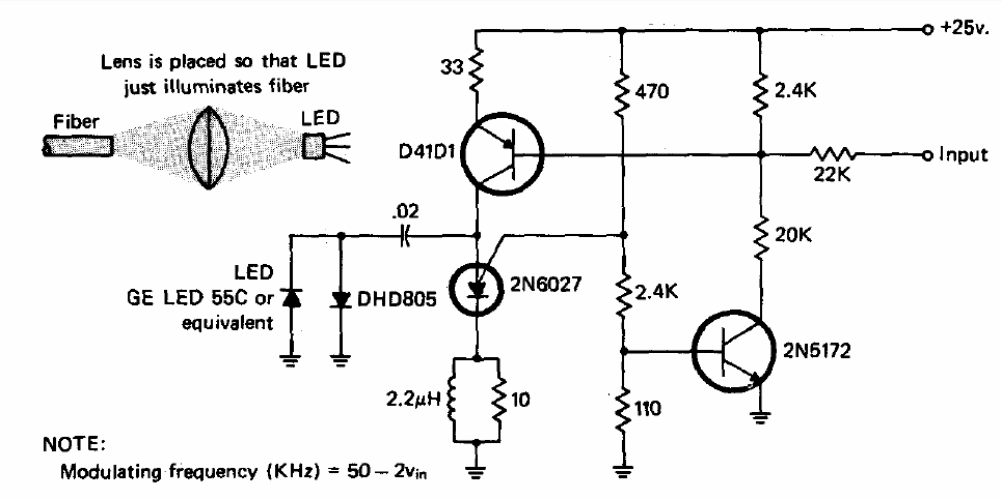

This circuit was obtained in a 1977 technical documentation. The PUT admits equivalent and the modulating transistor can be the BD136. The ground transistor can be 2N2222. The LED can be of high-power infrared.
| Clique na imagem para ampliar |
50 kHz Fiber Optic Transmitter (CB13533E)
- Details
- Written by: Newton C. Braga
