Field Strength Meter (CB6539E)

Details
Written by: Newton C. Braga

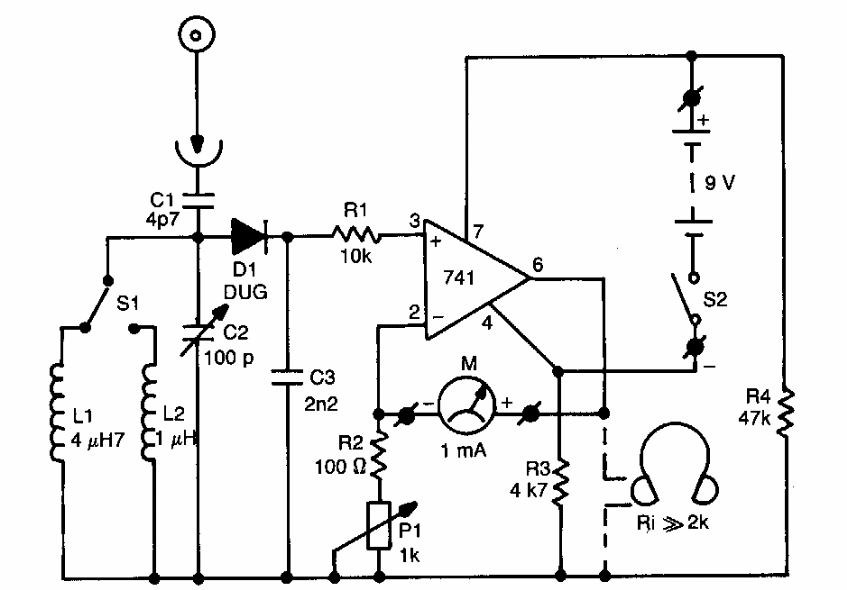

    Found on an 80's Elektor, this circuit uses common components, being the diode a general purpose germanium. The coils select the frequency range of the indicator that reaches 60 MHz.
