12 W Amplifier (CB6303E)

Details
Written by: Newton C. Braga

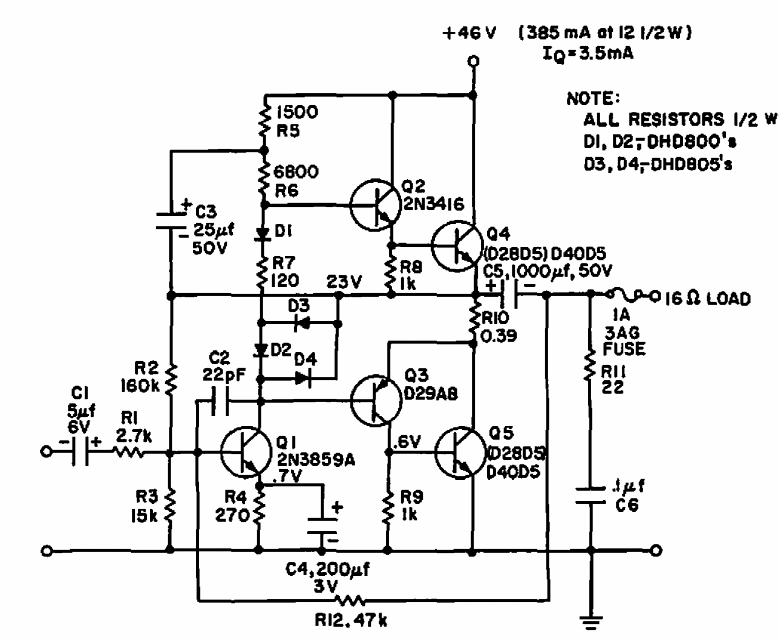

    This 12.5 W quasi-complementary amplifier was found in a 1969 General Electric publication. Note the high supply voltage. Transistors are common types at the time.
