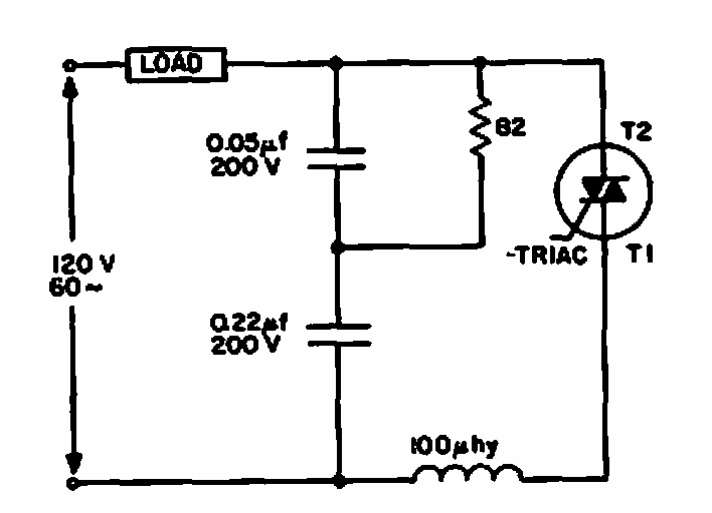

This circuit is from a 1967 General Electric SCR manual. The capacitors are polyester and the inductor must have current according to the controlled load.
| Clique na imagem para ampliar |
Damped filter for triac (CB6742E)
