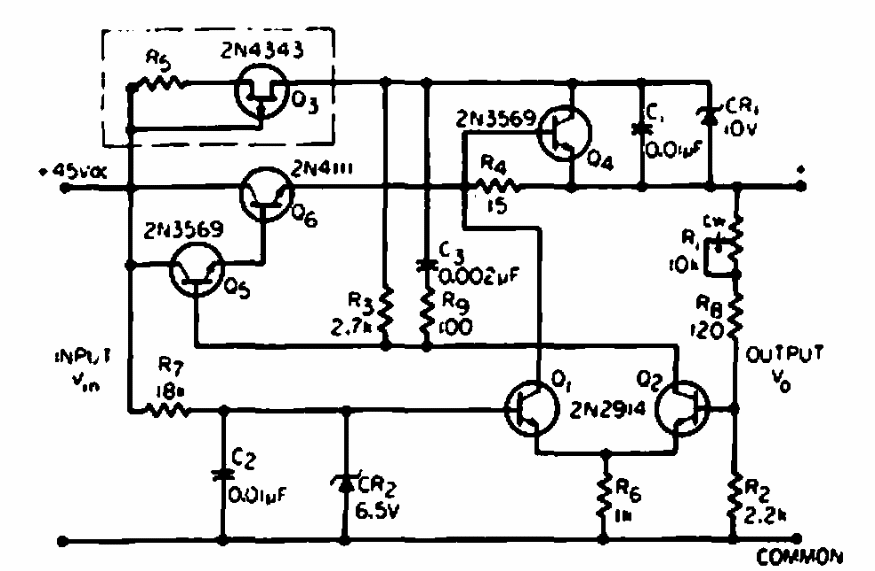

FET Constant Current Source (CB6622E)

Details
Written by: Newton C. Braga



     We found this circuit in a 1968 US documentation. The power FET is a component of the time and the current is 4.5 mA only.
