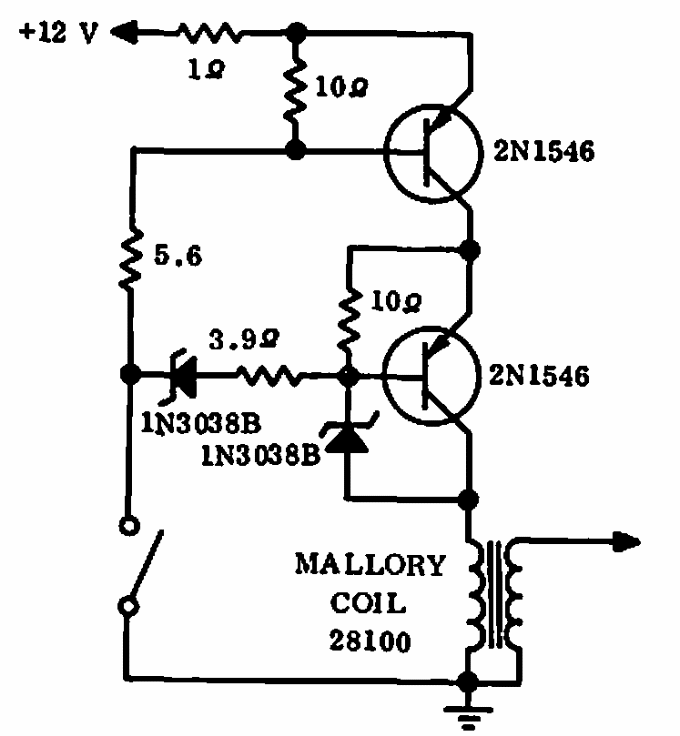

Two transistor assisted ignition (CB6391E)

Details
Written by: Newton C. Braga



     This Motorola circuit is from 1965. Collector currents must be 7 and 12 A for transistors. Equivalents may be used. The circuit is for contact breaker cars.
