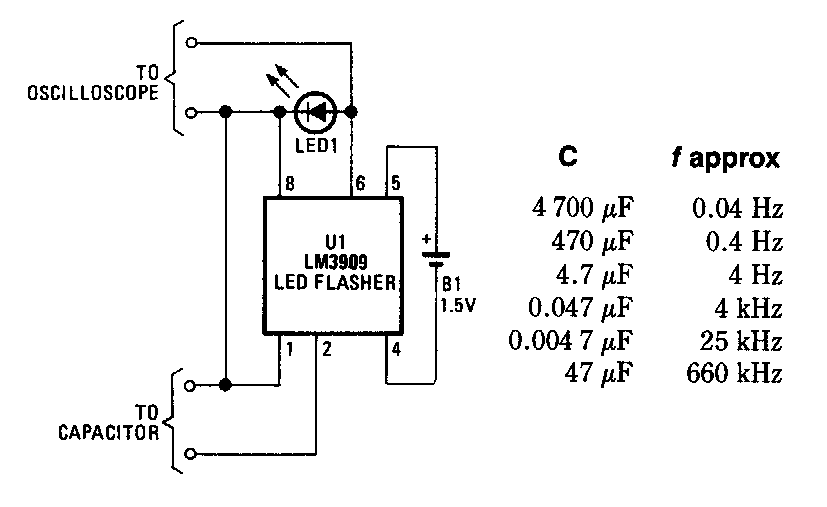

The LED frequency flashes depends on the value of the capacitor tested according to the table. We found this circuit in a Popular Electronics from the 80s.
| Clique na imagem para ampliar |
Simple capacitor test (CB7060E)
- Details
- Written by: Newton C. Braga
