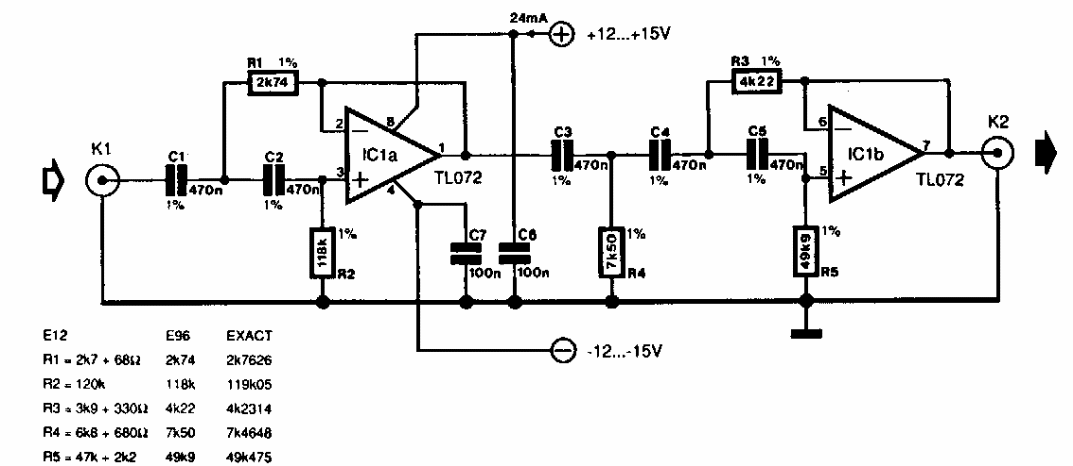

Rumble filter (CB6541E)

This turntable filter was found on an 80's Elektor. The circuit makes use of operational features that are easily obtainable today.

| Clique na imagem para ampliar |
