Direct Output Coupling Amplifier (CB6202E)

Details
Written by: Newton C. Braga

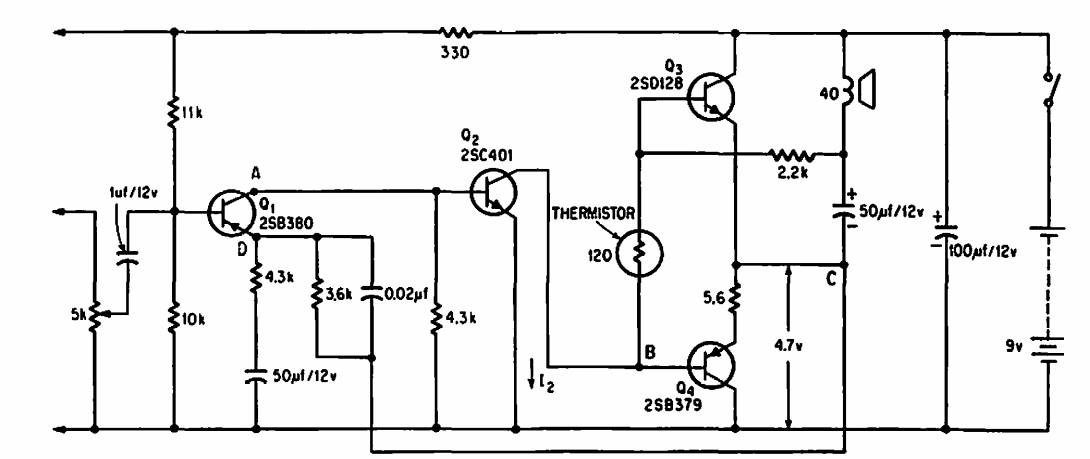

     This power step drains just 3.5 mA from the battery and can provide good playback on a 4-ohm speaker. The circuit is from an 80's documentation.




| Clique na imagem para ampliar |
