Logic Level Shifter (CB7258E)

Details
Written by: Newton C. Braga

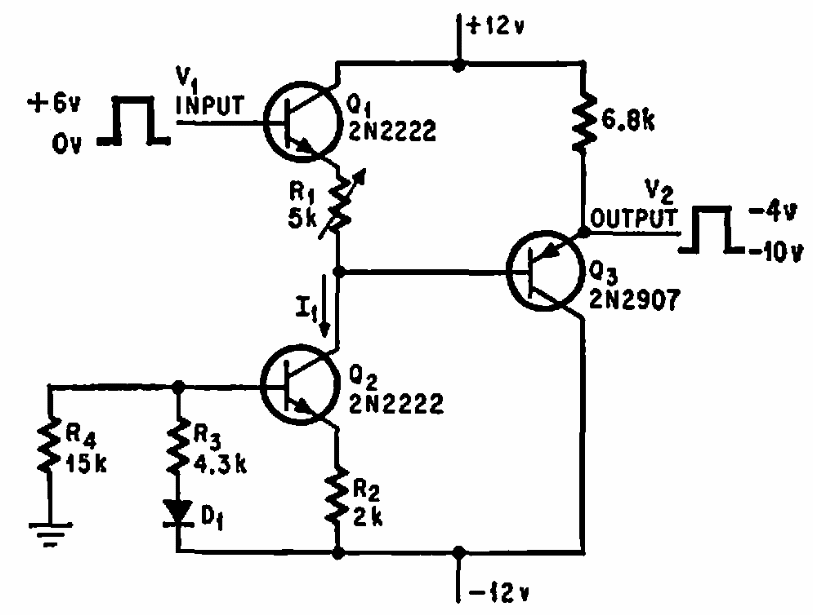

     This circuit transforms 0 and 6 V signals into -4 to 10 V signals and can be used in a shield. The circuit uses transistors that are still common today.




| Clique na imagem para ampliar |
