FET Preamplifier (CB6969E)
- Details
- Written by: Newton C. Braga

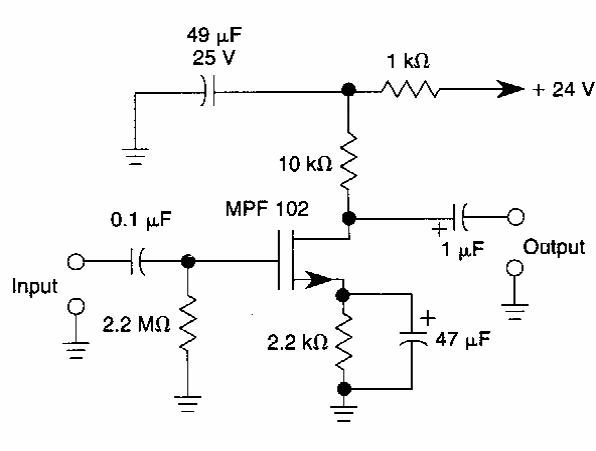

This circuit was found in old FET documentation, but it applies to any modern common JFET. The circuit has a gain of approximately 20 dB up to 100 kHz.
