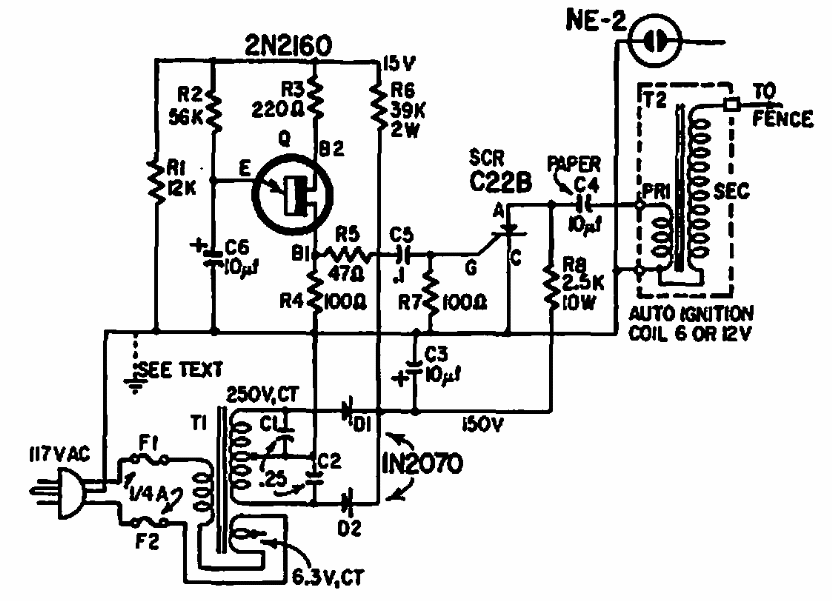

This circuit was obtained from a 1965 Radio Electronics. The semiconductors used admit modern equivalents. The high voltage coil is an automobile ignition coil.
| Clique na imagem para ampliar |
Electric fence (CB6933E)
- Details
- Written by: Newton C. Braga
