Audio Squelch (CB7394E)

Details
Written by: Newton C. Braga

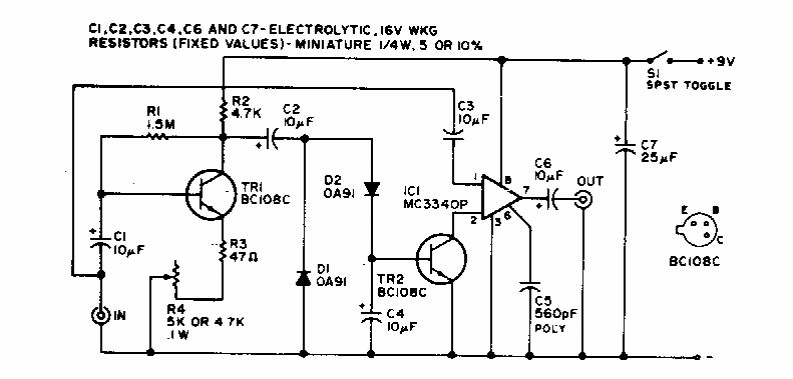

     This squelch circuit used in transmitters was found in a magazine for radio amateurs 73 in the 1980s. The circuit admits equivalent components.




| Clique na imagem para ampliar |
