Q Variator (CB7369E)

Details
Written by: Newton C. Braga

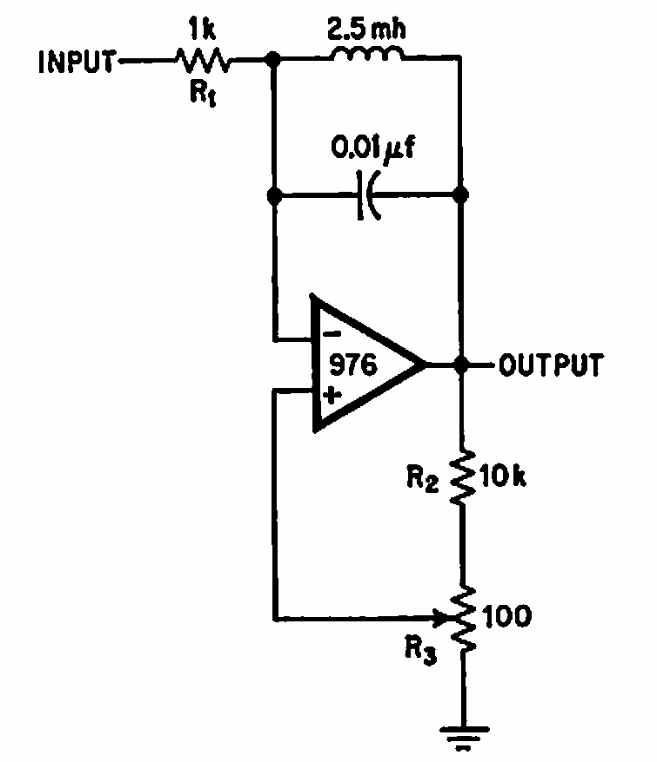

     With this circuit found in an American documentation from 1969 it is possible to vary the selectivity (Q factor) of a tuned circuit. The operational is from that time.
