Instrument driver (CB6840E)

Details
Written by: Newton C. Braga

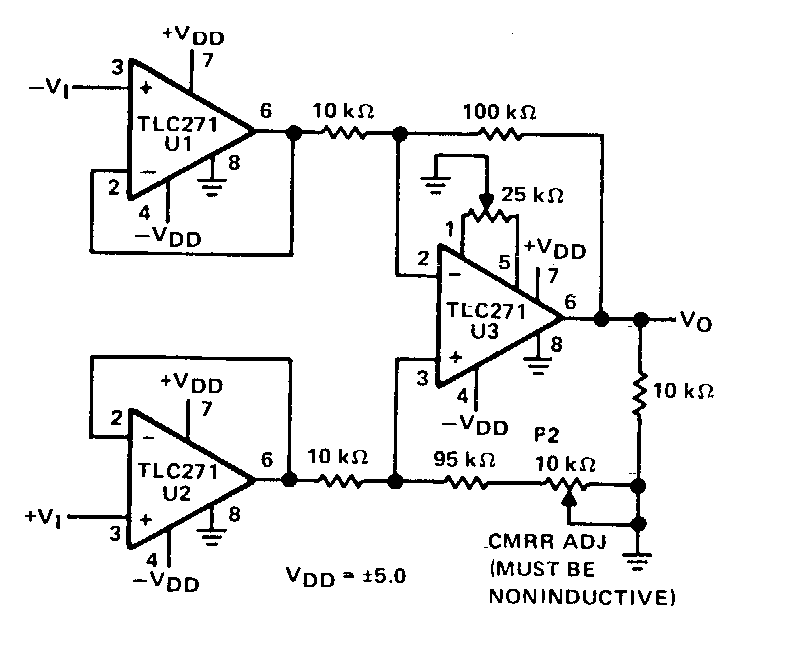

     Found in Texas Instruments documentation from the 90's, this circuit can be used as a shield due its symmetrical power is 5 V. The circuit has offset adjustment and a pass band of 200 kHz.




| Clique na imagem para ampliar |
