Home Appliance Indicator (CB6681E)

Details
Written by: Newton C. Braga

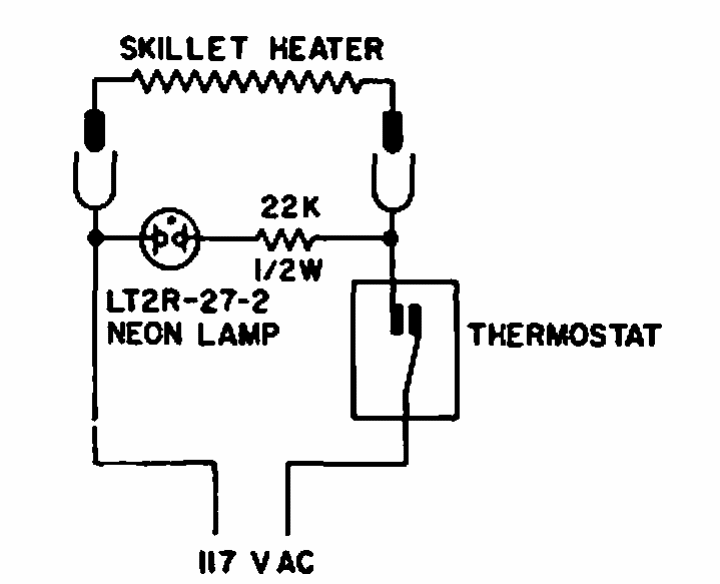

     This circuit was obtained in a documentation about old neon lamps. The circuit indicates when a home appliance with thermostat and heating element is on.
