555 Linear Ramp Generator (CB6357E)

Details
Written by: Newton C. Braga

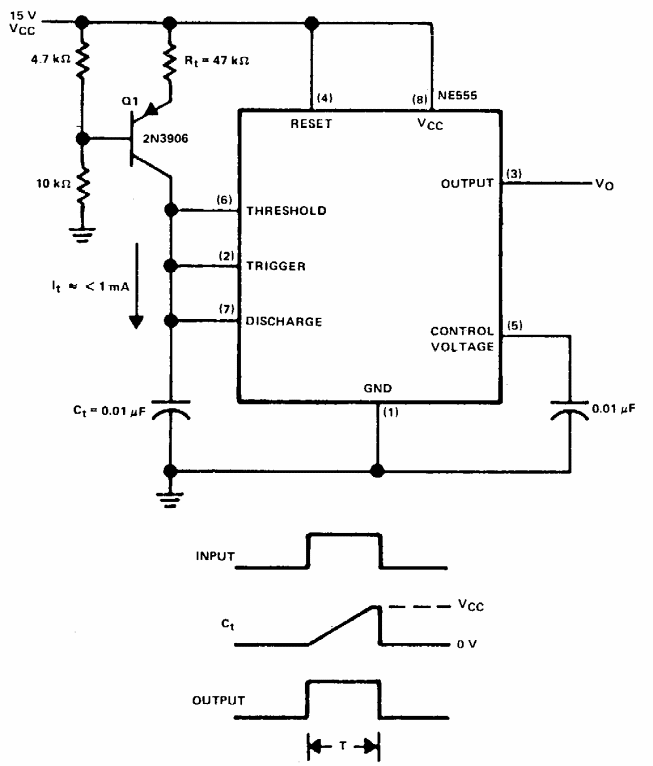

     This circuit appears elsewhere in this section and on this site. The circuit generates a linear ramp having been found in 1980s documentation. The transistor is a general purpose type.






| Clique na imagem para ampliar |
