Fiber Optic Interface (CB6233E)

Details
Written by: Newton C. Braga

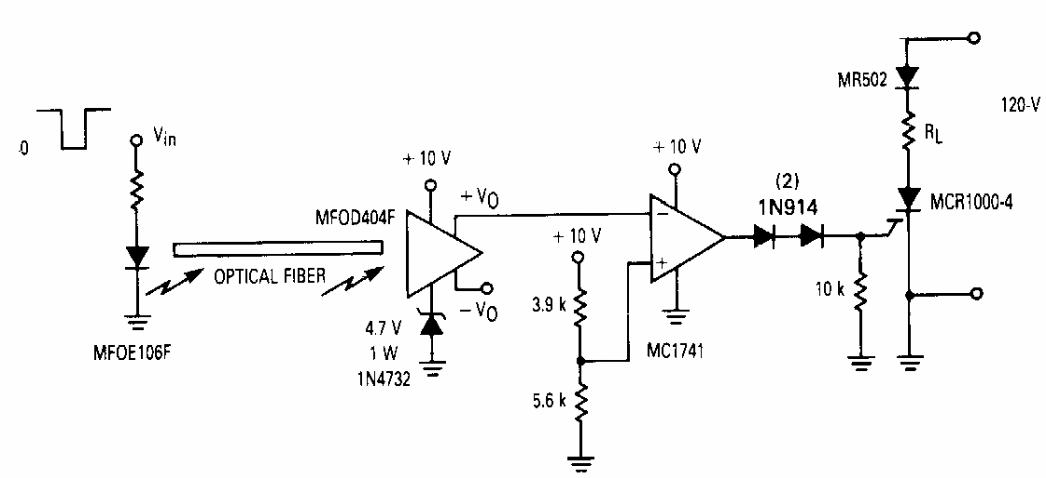

     This circuit was found in Motorola documentation from the 1980s. The components are of the time, not currently common as operational and opto receiver.




| Clique na imagem para ampliar |
