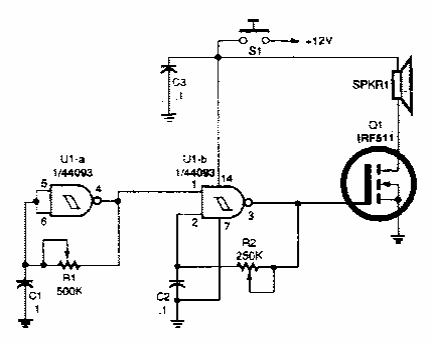

Siren for motorcycle (CB6491E)

Details
Written by: Newton C. Braga



     This circuit is from a Popular Electronics of the 90's. Any power MOSFET can be used. The circuit has frequency adjustment and modulation.
