20 W Class AB Amplifier (CB6283E)

Details
Written by: Newton C. Braga

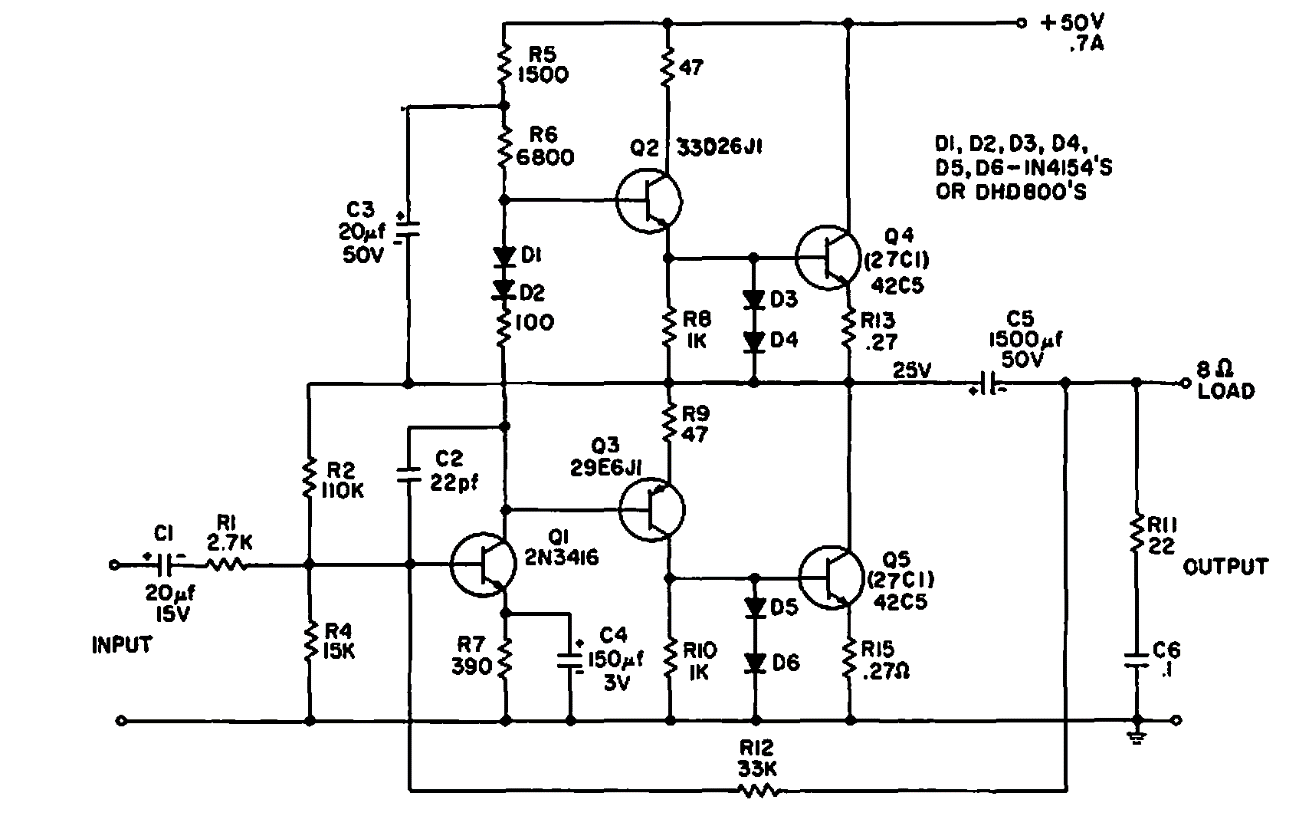

    This circuit was suggested by General Electric in a 1969 documentation. The transistors are of the time and the power supply is not given. Note the high supply voltage.




| Clique na imagem para ampliar |
