Noise limiter (CB7397E)

Details
Written by: Newton C. Braga

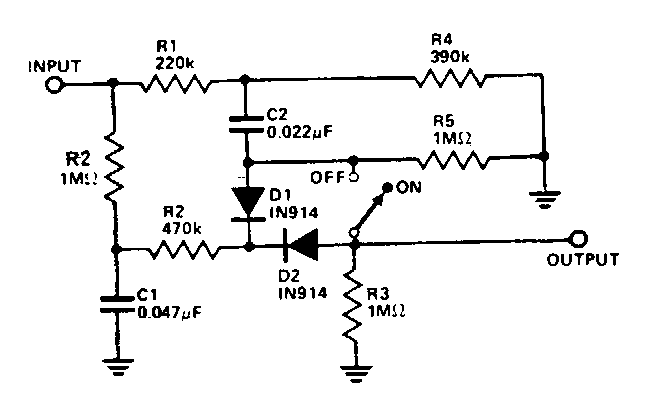

     This circuit for audio applications was found in an English magazine from the 80's. The circuit has a pass band below 3 kHz making it ideal for telecom applications.




| Clique na imagem para ampliar |
