Infrared detector (CB7108E)

Details
Written by: Newton C. Braga

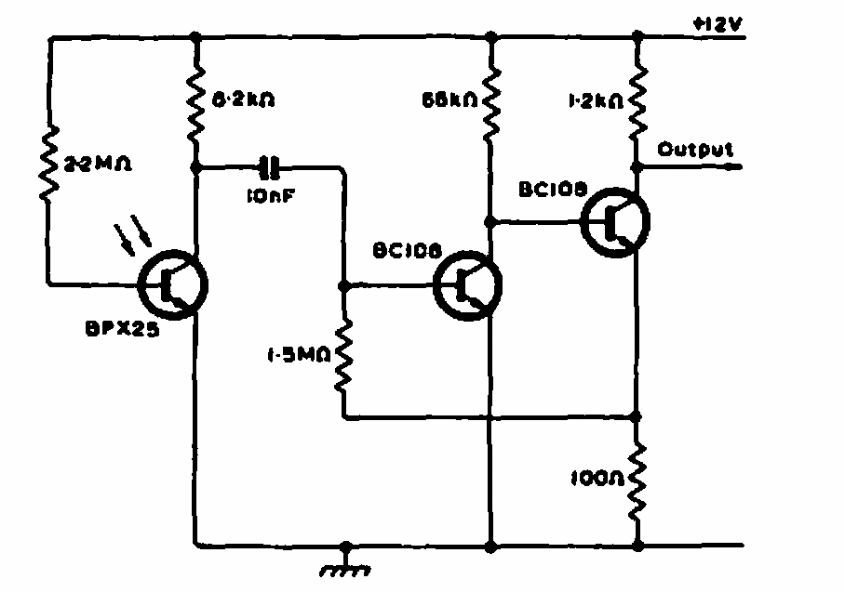

     This circuit was found in a Philips documentation from 1967. The circuit uses components from the time that have current equivalents such as BC548 for transistors.
