Function generator (CB6994E)

Details
Written by: Newton C. Braga

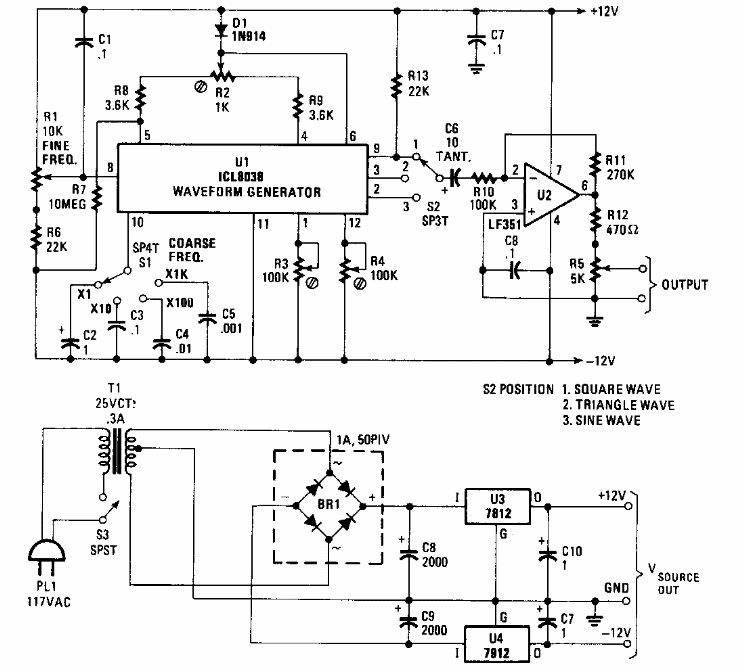

     This circuit was found in 1980s Radio Electronics. The circuit includes the power supply. The ICL8038 circuit was very common at the time in this type of application.




| Clique na imagem para ampliar |
