Debounced switch (CB6815E)

Details
Written by: Newton C. Braga

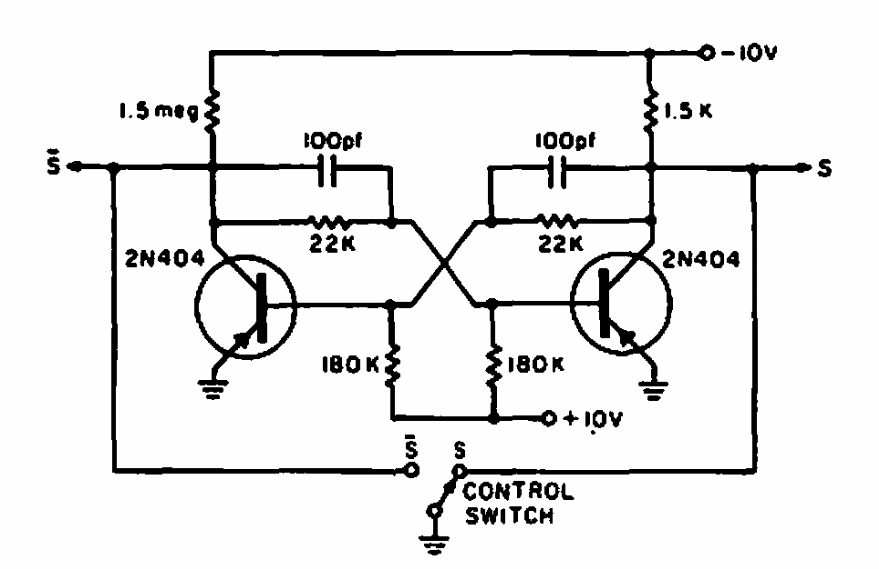

     This version of the traditional debounce circuit was found in a 1964 documentation. The circuit can be designed based on modern transistors.
