Algebraic Comparator (CB6492E)

Details: Written by: Newton C. Braga

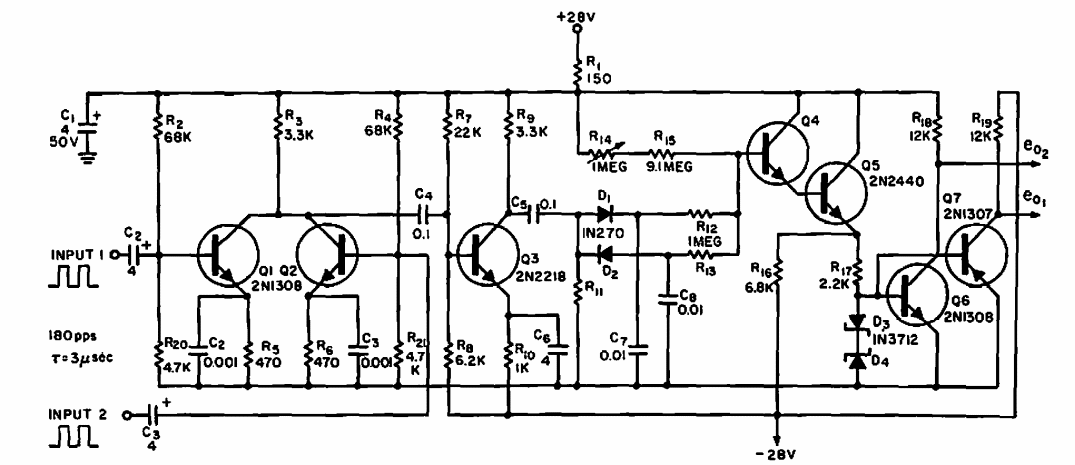

Found in a 1964 Electronic Design this circuit compares two signals by providing the inverse of the algebraic sum of their frequencies. The circuit can be made with modern equivalent transistors.

| Clique na imagem para ampliar |
