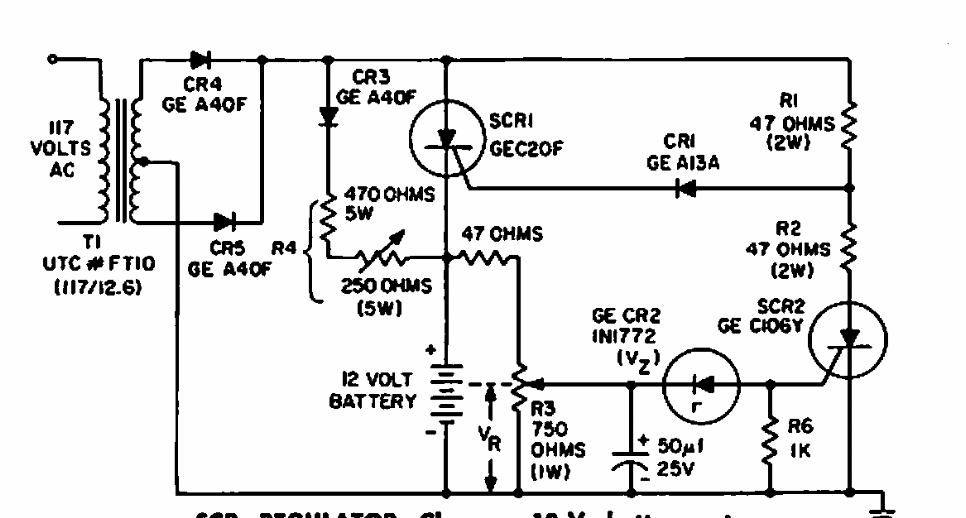

SCR Charger CIR13730S (CB6397E)

Details
Written by: Newton C. Braga



    Circuits similar to this can be found in this section. This is from 1967 General Electric documentation. The main SCR must be fitted with a heat sink.
