12 V power stage (CB6166E)

Details
Written by: Newton C. Braga

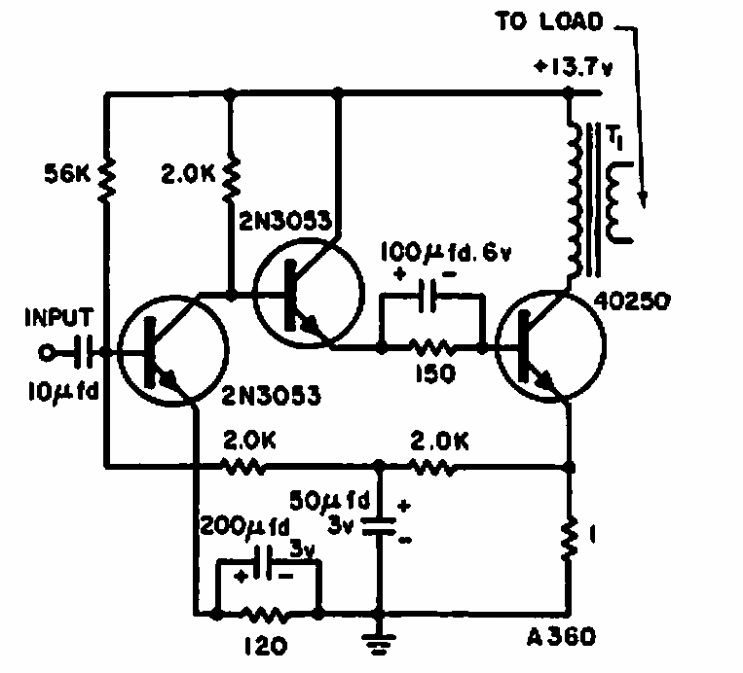

    This circuit is from a 1968 Electronic Design. The characteristics of the output transformer are not given and the transistors are of the time. The circuit provides a power of a few watts.




| Clique na imagem para ampliar |
