Battery na alternator monitor (CB7136E)

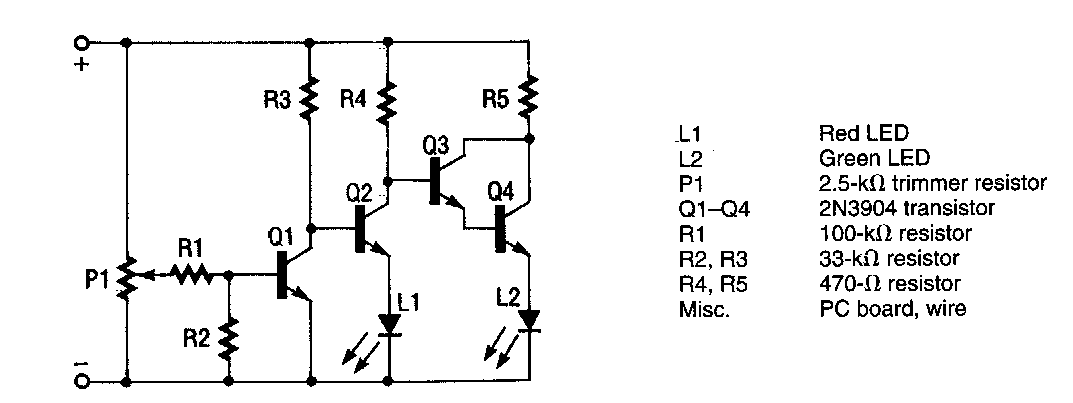

Found in a 1991 Hobbyst Handbook, this circuit monitors both battery and alternator voltage. The set point is obtained at P1.

| Clique na imagem para ampliar |
