Light Sensor Preamplifier (CB6434E)

Details
Written by: Newton C. Braga

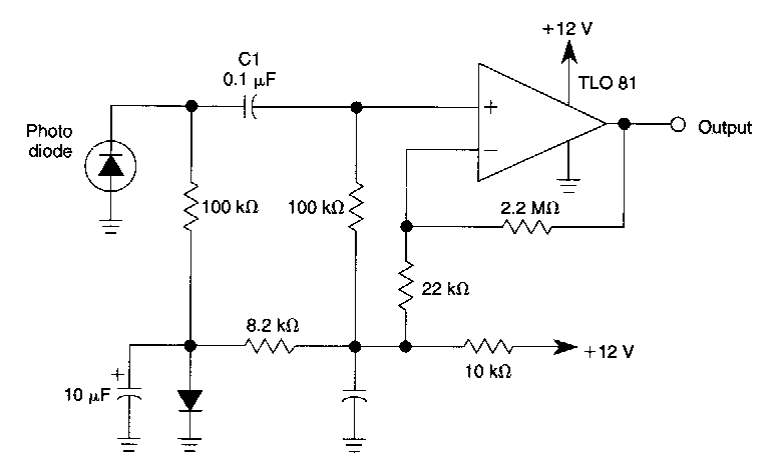

     Found in a 1990s American technical brochure, this circuit is intended for alarms that use as photodiode sensors. The circuit has a frequency response of up to 20 kHz. The gain is 40 dB.
