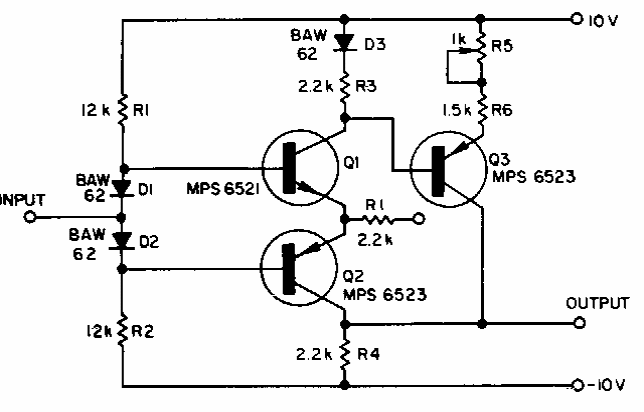

Frequency doubler up to 1 MHz (CB6343E)

Details: Written by: Newton C. Braga

This circuit uses common components at the time of its publication in the 1980s. The circuit can be made with modern equivalent transistors. The input signal is sinusoidal.

| Clique na imagem para ampliar |
