Night light (CB6859E)

Details
Written by: Newton C. Braga

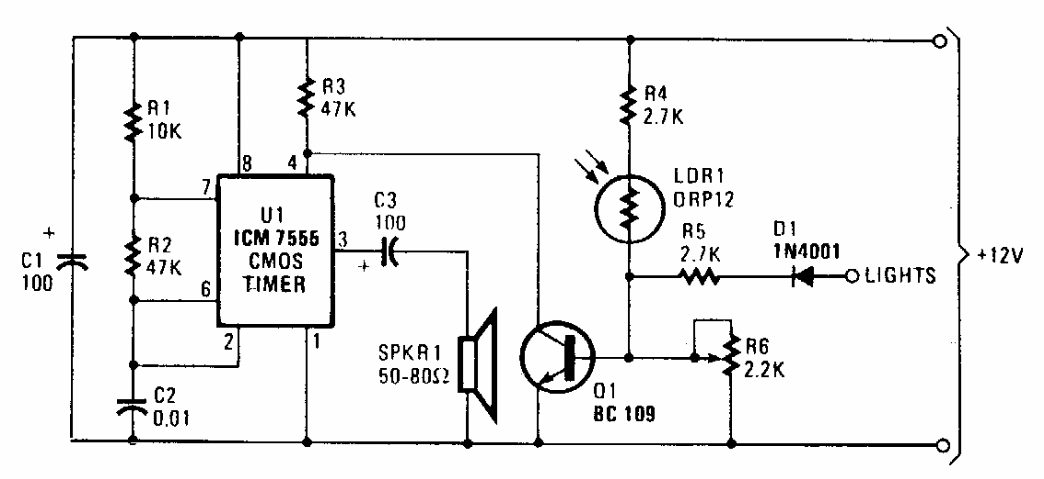

    This circuit emits a warning sound when night falls. The circuit is from a Hands On Electronics from the 90s. The Sensor is a common LDR and R6 adjusts the trigger point.




| Clique na imagem para ampliar |
