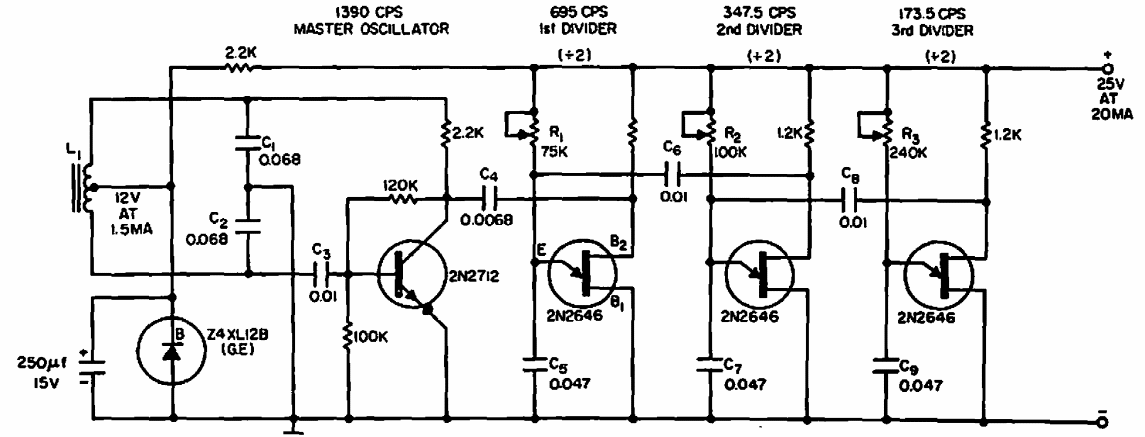

Cascading unijunction divider (CB6821E)

Details
Written by: Newton C. Braga



     Found in a 1965 Electronic Design, this circuit divides the frequency of a cascaded signal using unijunction transistors. The bipolar transistor supports an equivalent. The shock is 470 mH.
