Analog frequency meter (CB6901E)

Details
Written by: Newton C. Braga

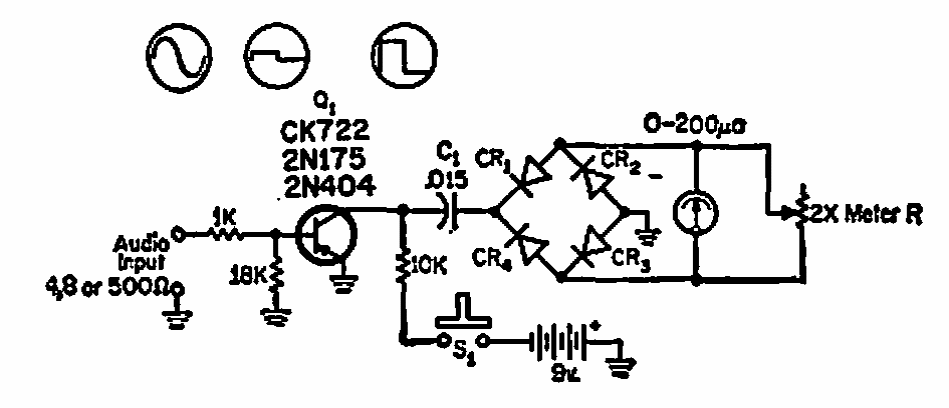

    This circuit for frequencies of 20 to 2 kHz was obtained in English documentation from 1966. The transistor can be any general purpose and powered by batteries.
