Power Down Circuit (CB7319E)

Details
Written by: Newton C. Braga

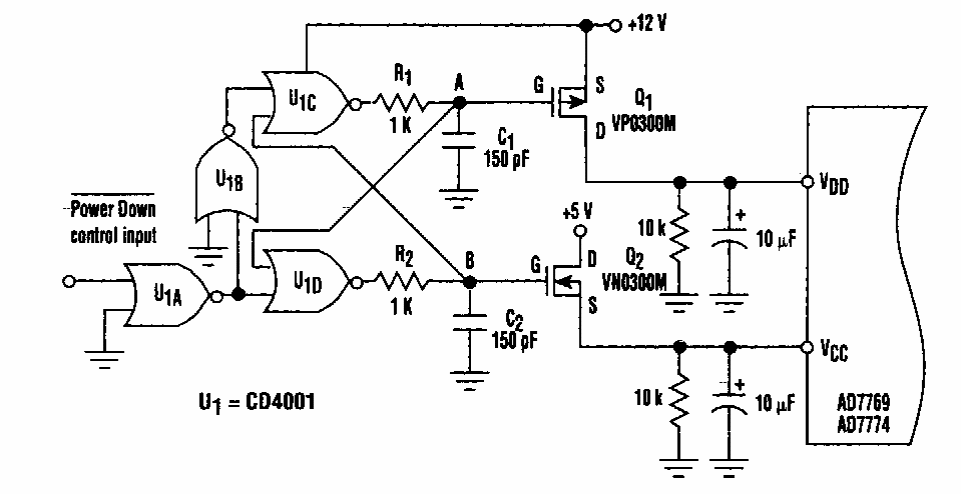

     This circuit works on analog I/O ports and was suggested by an Electronic Design from the 90s. It can be used to work as a shield in projects with microcontrollers.
