4 logical state indicator (CB7141E)

Details
Written by: Newton C. Braga

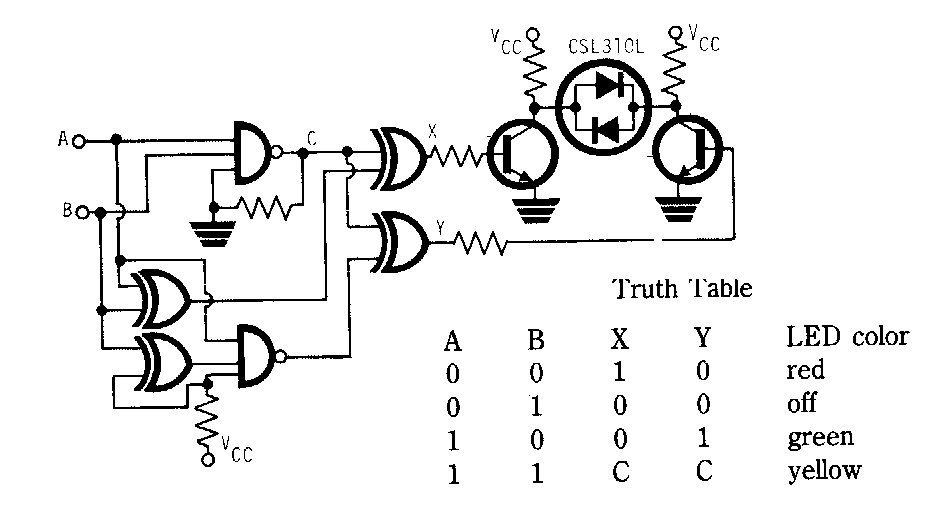

    We found this circuit in an Electronic Engineering of the 90s. The circuit can be implemented with any logic and next to the diagram the truth table for the indications is given.




| Clique na imagem para ampliar |
