Emergency light (CB7044E)

Details
Written by: Newton C. Braga

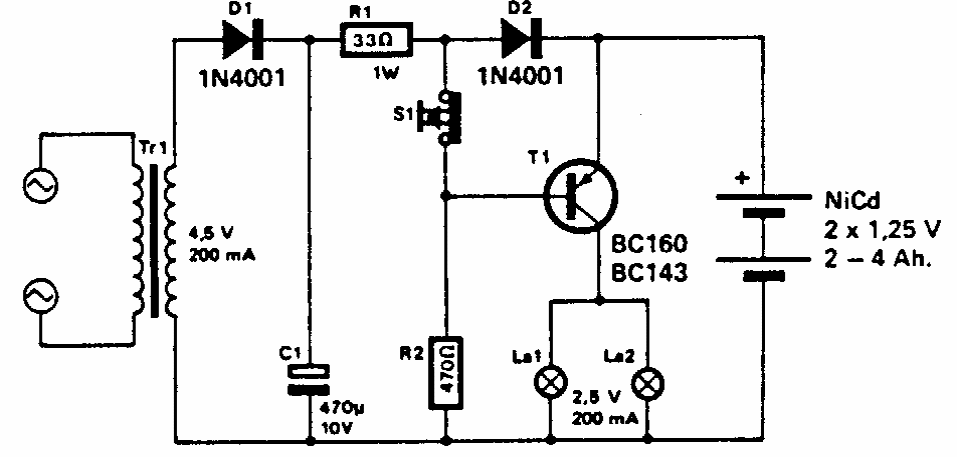

     This circuit was obtained in an old Elektor and can be adapted to use white power LEDs. The transistor must be equipped with a heat sink. The circuit has a battery charger.




| Clique na imagem para ampliar |
