Flash triggered by SCR (CB6754E)

Details
Written by: Newton C. Braga

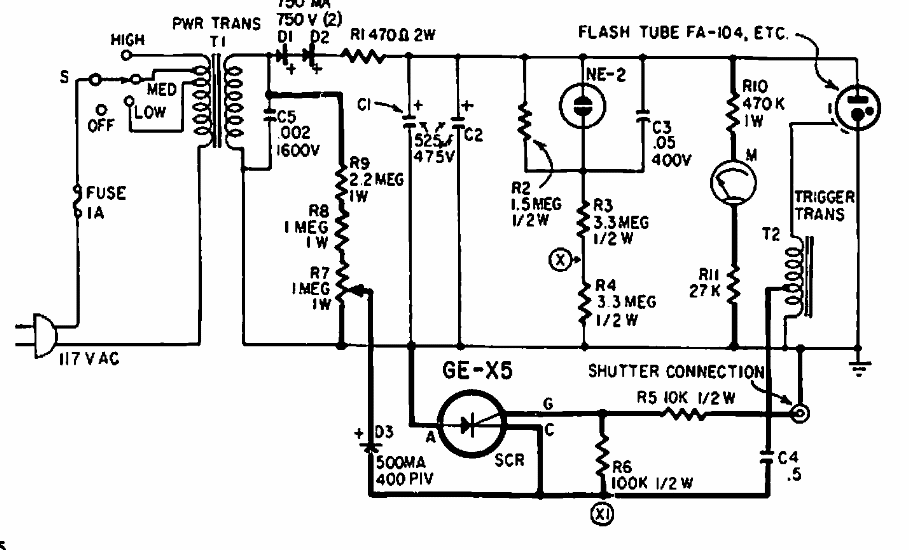

     Found on a 1965 Radio Electronics, this circuit fires a signal xenon lamp applied to the SCR from an external trigger. The pulse transformer generates high voltage for flash triggering.






| Clique na imagem para ampliar |
