Optoelectronic Regulator (CB6635E)

Details
Written by: Newton C. Braga

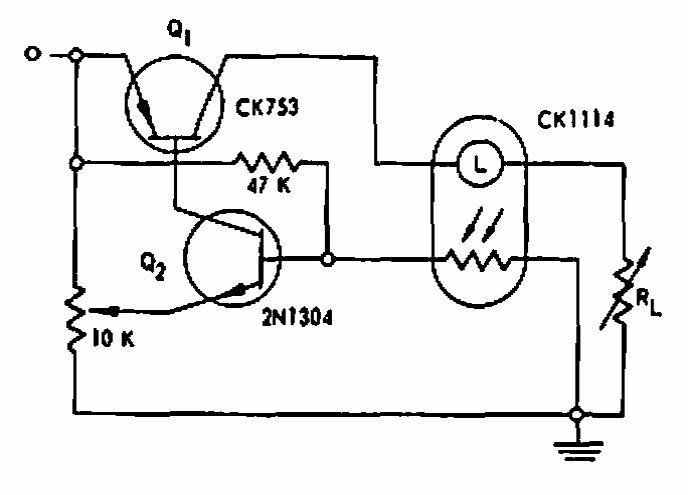

     This circuit uses an optical coupler called Raystor created by Raytheon in the 1960s. The circuit uses components from the era that can be changed. The current is low.
