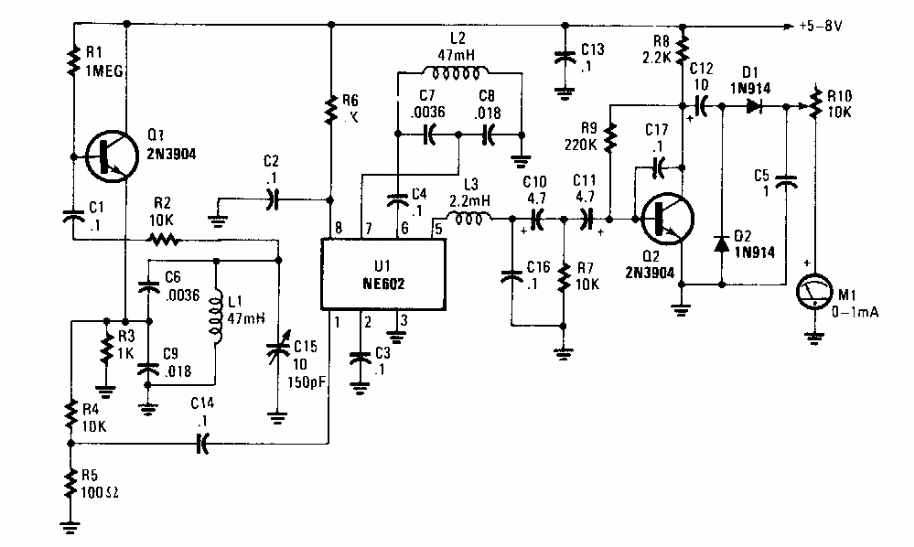

Permanent magnet detector (CB7380E)

Details
Written by: Newton C. Braga



     We found this circuit in a Popular Electronics from the 90s. It operates at a frequency of 15 kHz. Components can be difficult to obtain, such as the integrated circuit.
