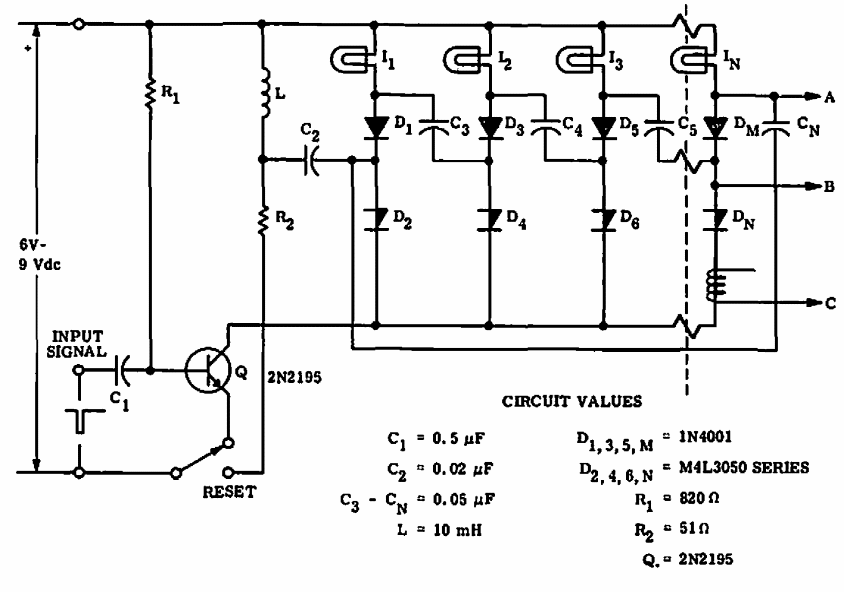

Ring Counter using Lamps (CB6599E)

Details
Written by: Newton C. Braga



     This circuit was found in Motorola documentation from 1966. The lamps are according to power and current according to the components used which are uncommon today.
