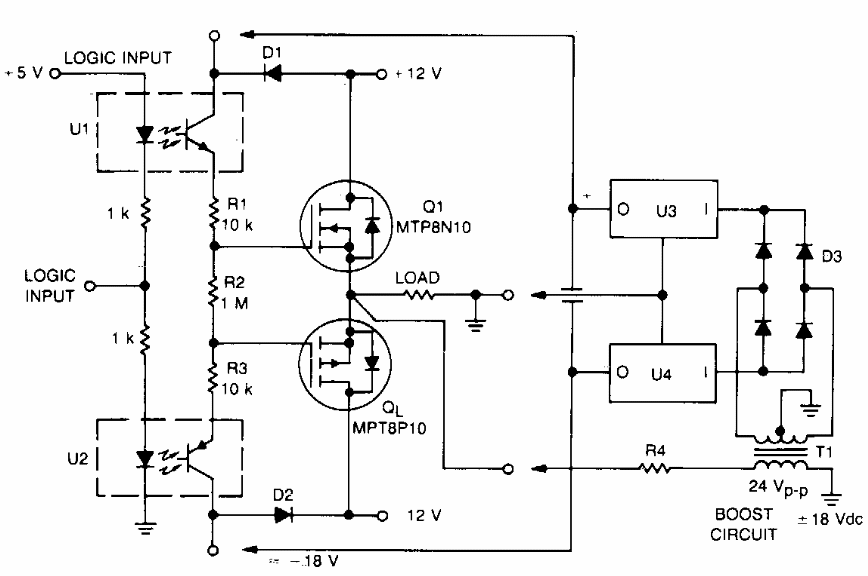

Line Driver (CB6220E)

Details
Written by: Newton C. Braga



     This circuit is from a 1980s Motorola documentation. The circuit makes use of old components that can in some cases be exchanged for modern equivalents.
