Two-phase motor control (CB7269E)

Details
Written by: Newton C. Braga

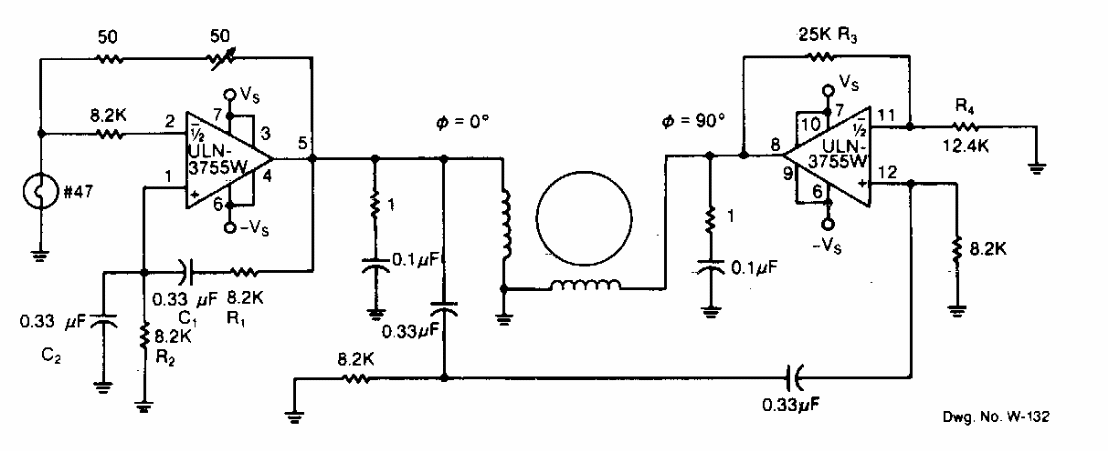

    Suggested by Sprague in the 90's documentation, this circuit applies to AC motors. The documentation does not indicate the maximum engine power that can be controlled.




| Clique na imagem para ampliar |
