Multi Sensor Alarm (CB6424E)

Details
Written by: Newton C. Braga

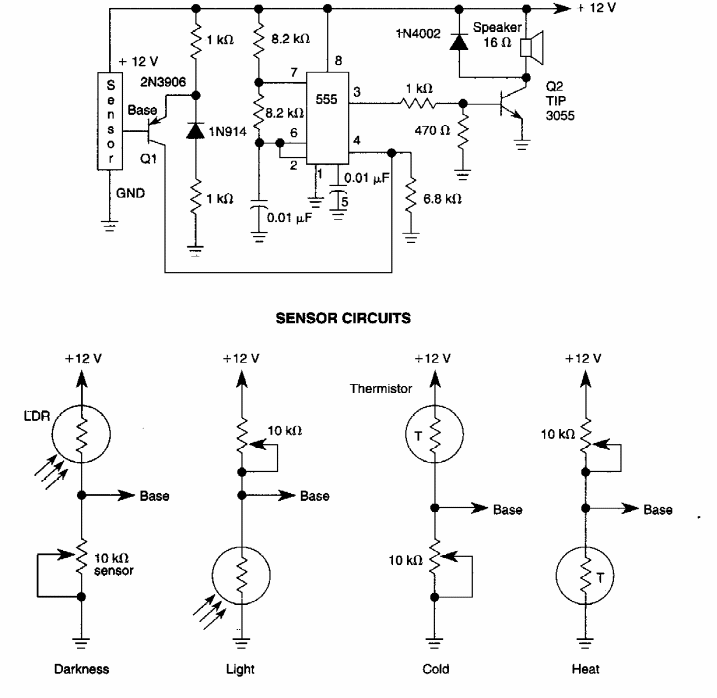

     This circuit that can be activated by light or heat was found in an old American documentation, but the components it uses are perfectly current. The power transistor shall be fitted with a heat sink.
