Power indicator (CB7255E)

Details
Written by: Newton C. Braga

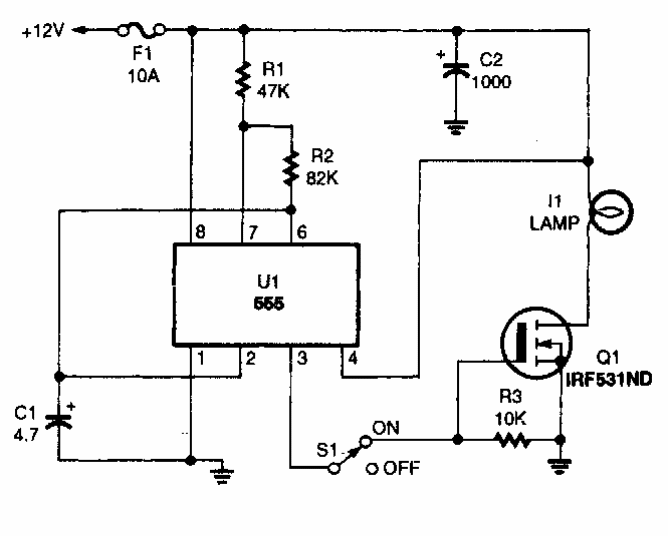

     Indicated by Popular Electronics to be used with a car headlight, this circuit can also have applications in fixed signaling. The power MOSFET must be in accordance with the lamp.
