Nixie Driver (CB6691E)

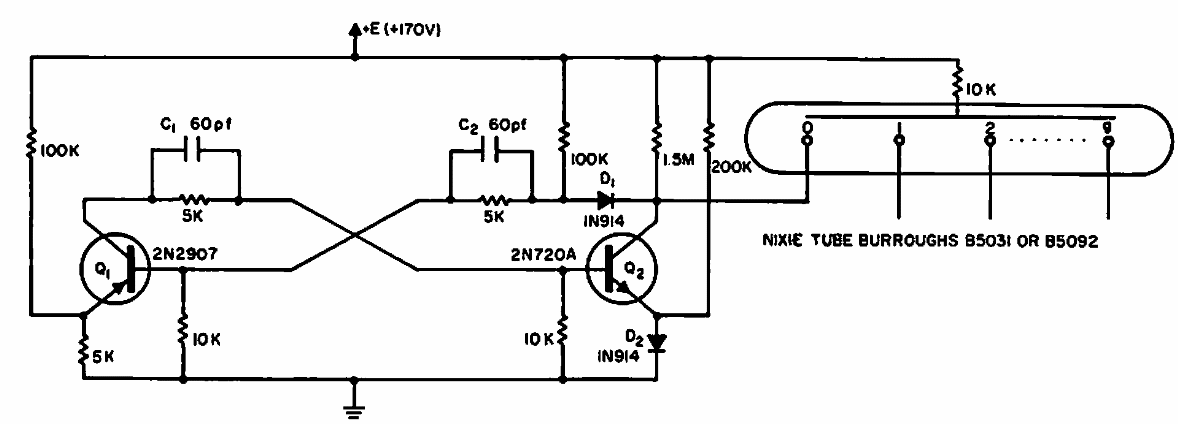

This Nixie pipe circuit was found in 1965 documentation. Note the high supply voltage. Appropriate transistors of the time were used.

| Clique na imagem para ampliar |
